Where it runs
This one has no modem of its own — it feeds a channel into the recorder it is wired to, and the platform sees the recorder. Whichever list that recorder is in is the answer for this camera too.
The full matrix → External AHD camera

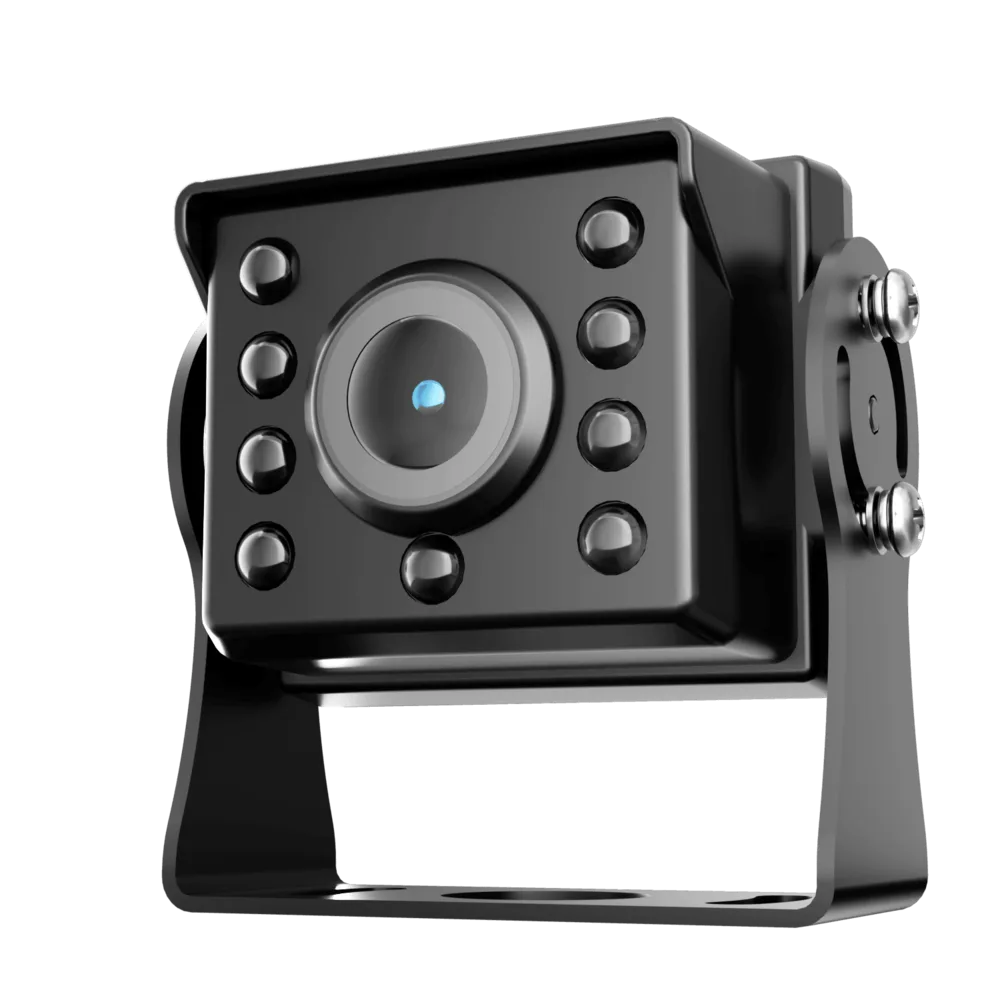

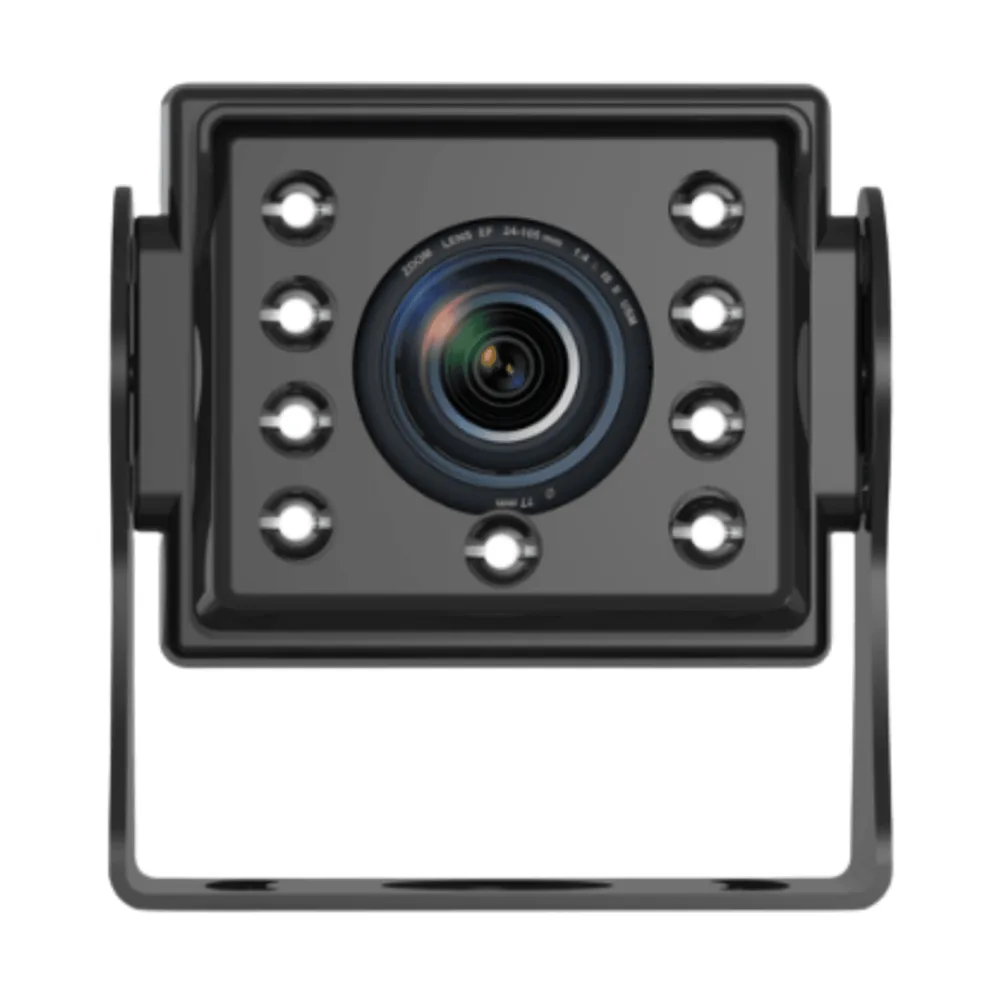

Square waterproof camera
External channel for trailers, tippers and cargo doors, IP67 with infrared.
- Channels
- AHD input
- On-device AI
- —
- Network
- 4-pin aviation
01 — Specification
What the manufacturer states
Transcribed from the manufacturer's own product page. Certificates are issued per device, not per manufacturer — ask us for the certificate of this model before you commit to a market.
The factory datasheet for the Square waterproof camera (PDF) — the original, on the manufacturer's own server.
- Resolution
- 1080p / 720p (AHD)
- Dynamic range
- 74 dB
- Field of view
- 170° diagonal / 150° horizontal / 80° vertical
- Night vision
- built-in IR LEDs
- Protection
- IP67, waterproof and dustproof
- Optics
- 2.1 mm focal length
- Connector
- 4-pin aviation
- Size
- 77 × 53 × 57 mm
02 — What it means in service
What it costs
An add-on channel, not a device on its own bill: it is quoted with the recorder it plugs into, and the figure is on the current price list.
The tiers and what is included →What it costs to run
Nothing, on its own. It has no SIM: the recorder it is wired to carries the data bill for every channel on it, and adding this one changes that bill only by what the extra footage costs when somebody asks for a clip.
How it goes in
Forty-five to ninety minutes in a van, at €90–170 of auto-electrical labour, and the last step is the one that gets skipped: a vehicle is not fitted until a frame from it has reached somebody's screen.
The seven steps, and what moves the price →What it gets quoted against
The camera it is quoted against is usually a Streamax: €284–397 ex VAT at a European distributor, and their cloud is €4.49–11.21 a vehicle a month on top of that.
Against Streamax, priced out → All eight comparisons →Put the Square waterproof camera in a vehicle before you commit to a batch.
Two demo units, configured for the platform you run and the vehicle you fit, with the certificate position for your country in writing. Tell us the fleet and we quote the configuration rather than the catalogue.
03 — Others in this class
If this one is not the fit
Specification read from the manufacturer's page on 20 September 2026: bsjiot.com/Square waterproof camera . Photo by the manufacturer. If a figure here disagrees with the datasheet you were sent, the datasheet wins and we want to hear about it.
Price list and two demo cameras
Put one in a vehicle before you decide.
Tell us the platform you run, the vehicles you fit and roughly how many cameras a year. You get the current price list, the certificate list for the models you care about, and two demo cameras configured for your platform before they ship — at your own trade price, credited against your first order.
